A brochure is vague, you cannot believe everything on the internet, and AI gets it wrong. Experience the quality and performance for yourself.
Visit our Los Angeles showroom in Fountain Valley. By appointment only.
Never compromised. The best in the industry.
Exclusive to Elevator Boutique and included at no extra cost on the A and E Series. If a minor fault stops the elevator between floors, it travels to the nearest floor and the doors unlock. Not available in the City of LA.

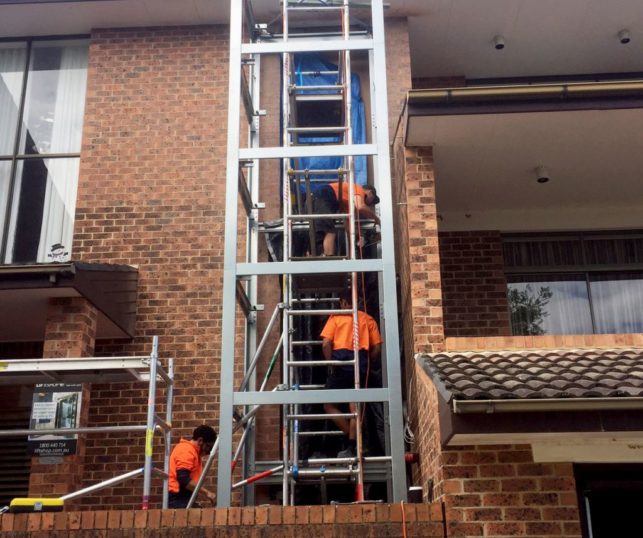

Custom built for every install. It protects your home and our people, and it is not negotiable. Included at no extra cost.

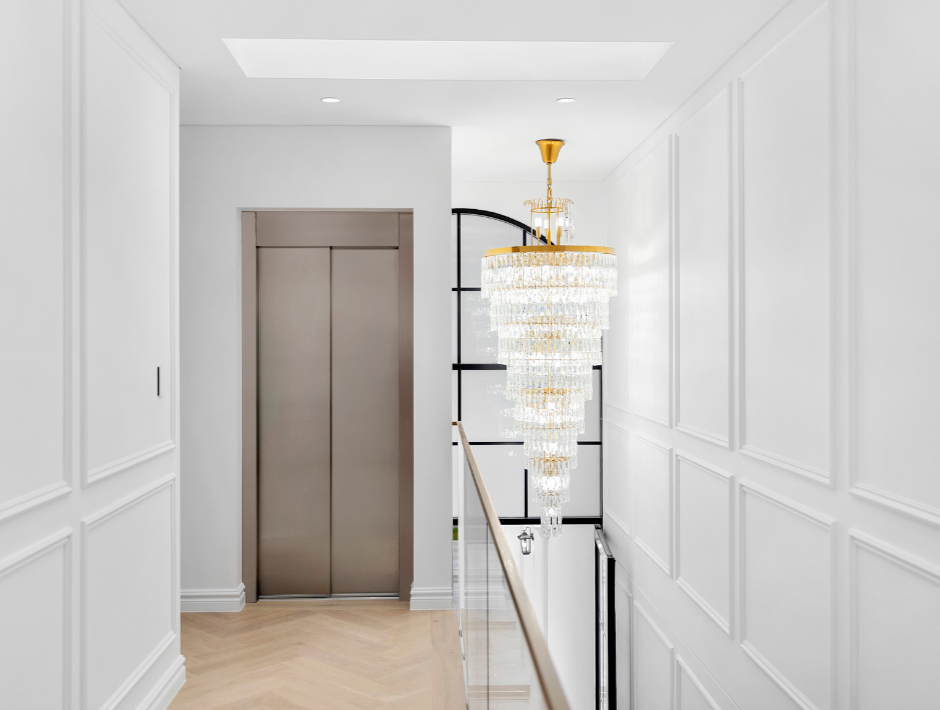

Every Elevator Boutique elevator is installed and serviced by our own qualified technicians. Our people are invested in, and trained to be better and safer.
Round-the-clock support for every Elevator Boutique service customer, on our 24-hour hotline (855) 326-8847.
An exemplary safety record, earned over decades. Every elevator is designed to meet or exceed relevant standards and tested before handover. Ask to meet the engineers behind the work.
We enter your home by invitation only, never unannounced, always with booking confirmation. Your trust is valued, and never abused.

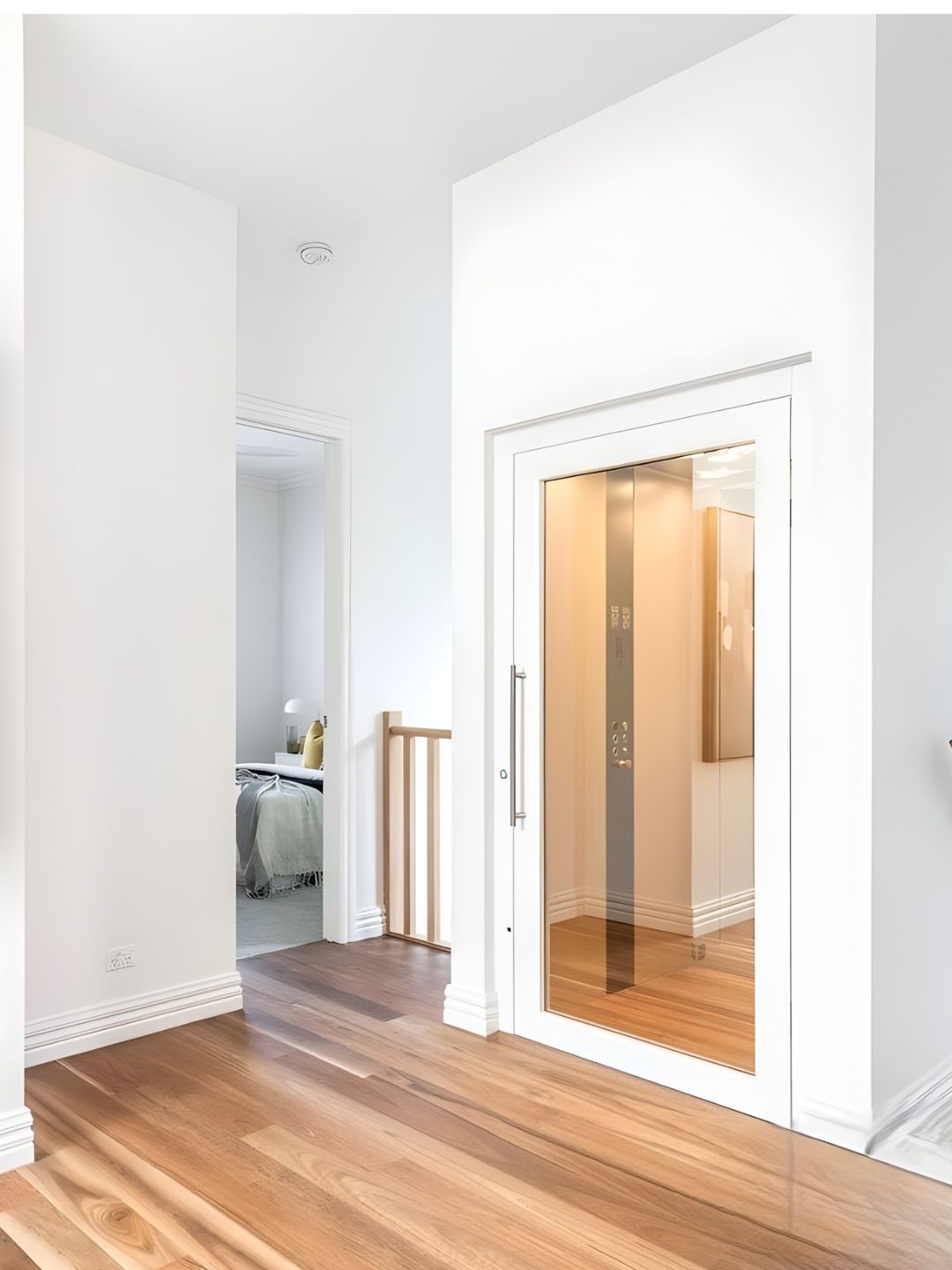

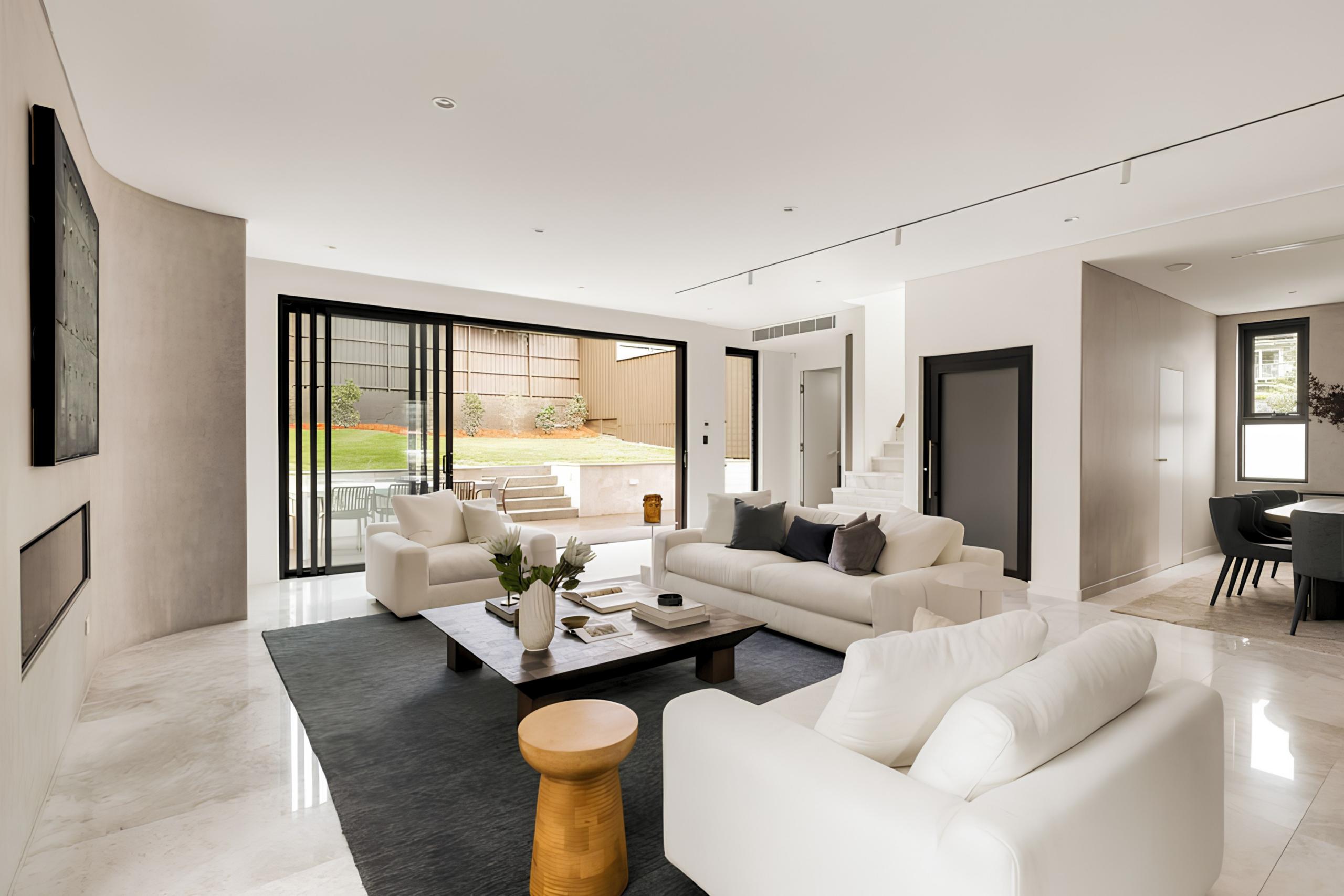

An Elevator Boutique elevator is not an off-the-shelf product. It is a considered design element - tailored to its home, architecturally integrated, precisely engineered.
Choose from a full palette of Italian finishes, cabins and doors. Make your elevator as unique as your home.
Style Your Elevator →

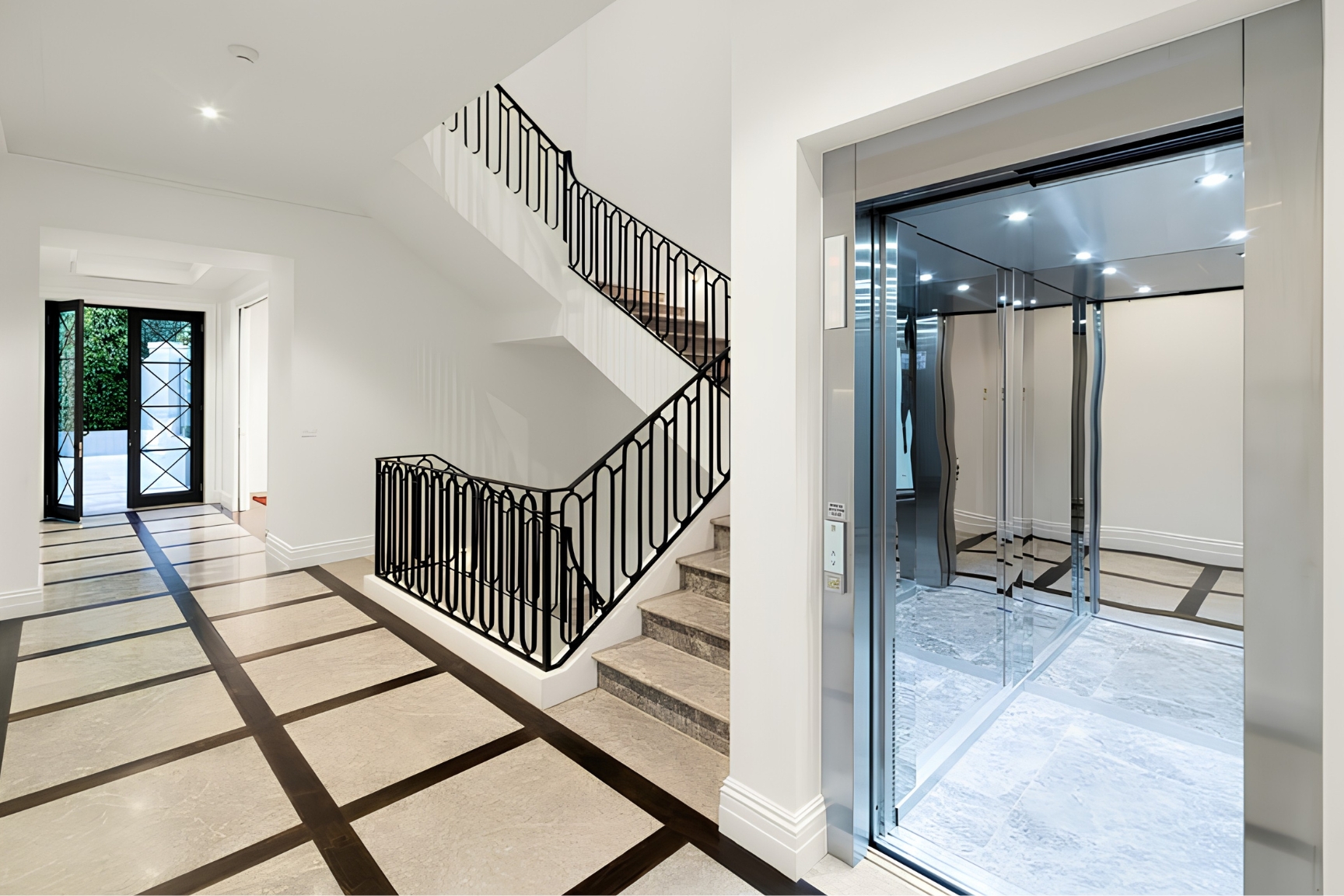

Our drives are engineered to carry more - so every cabin is built from premium materials, without compromise.
Swipe to explore the differences
Included as standard.

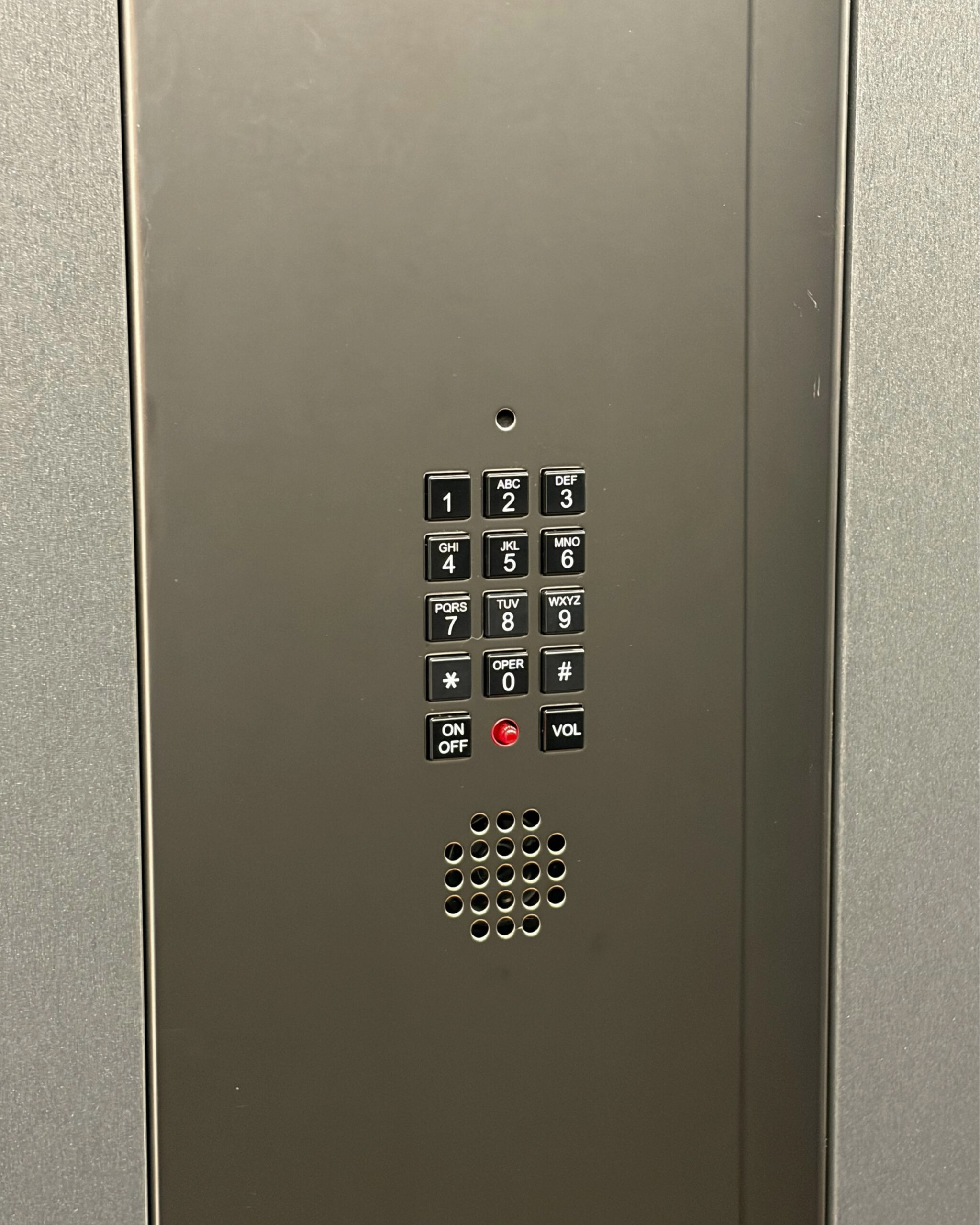

USA-made flush-mount auto-dialers always, because plastic is ugly.
Premium aluminum as standard.

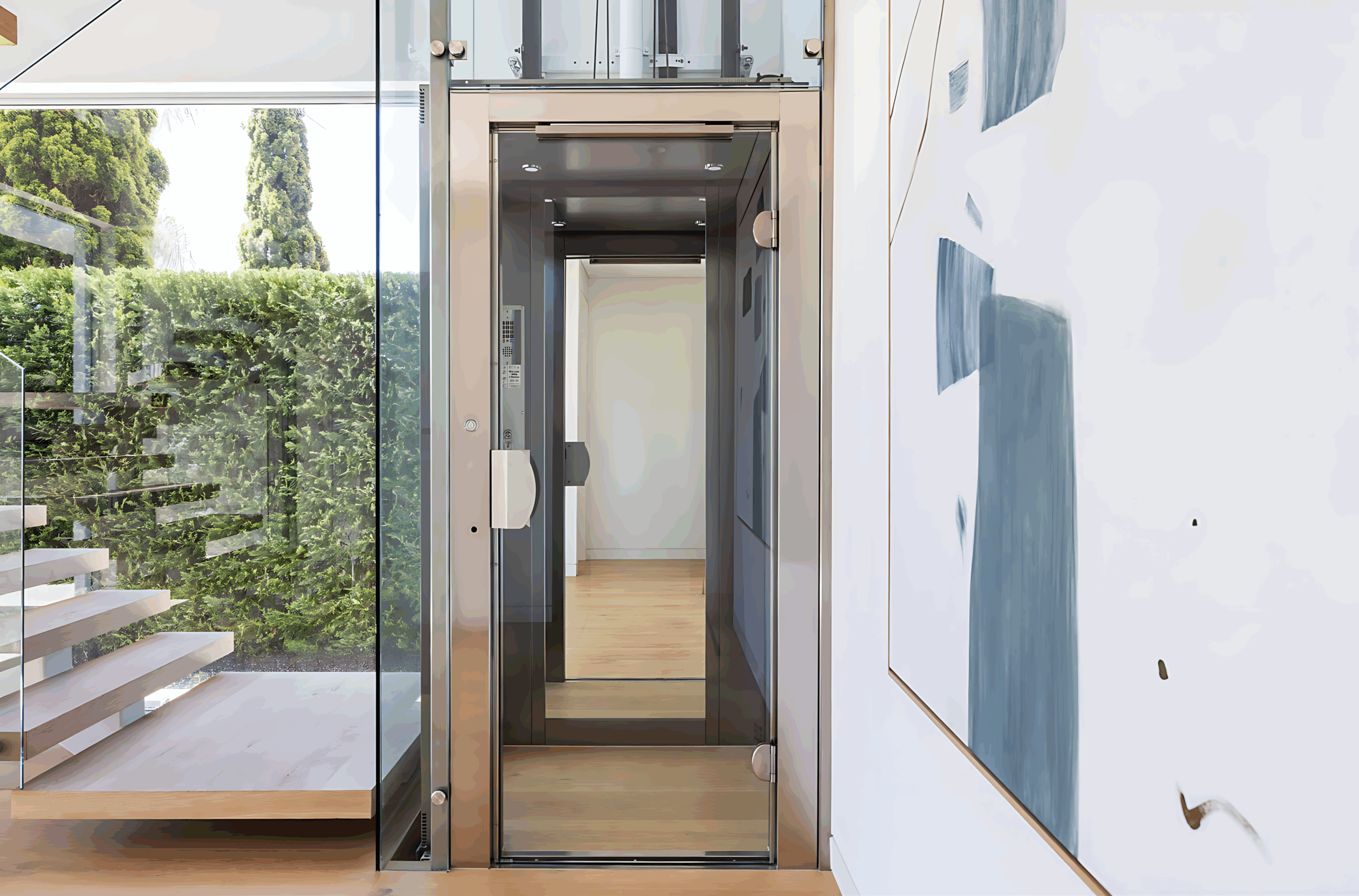

2100 mm (82.7 in) ceilings. Feel the difference.
No buttons. No touching. No hassle. Just a discreet gesture to call the elevator.
By focusing on our own systems we deliver faster fixes and service that's actually informed.

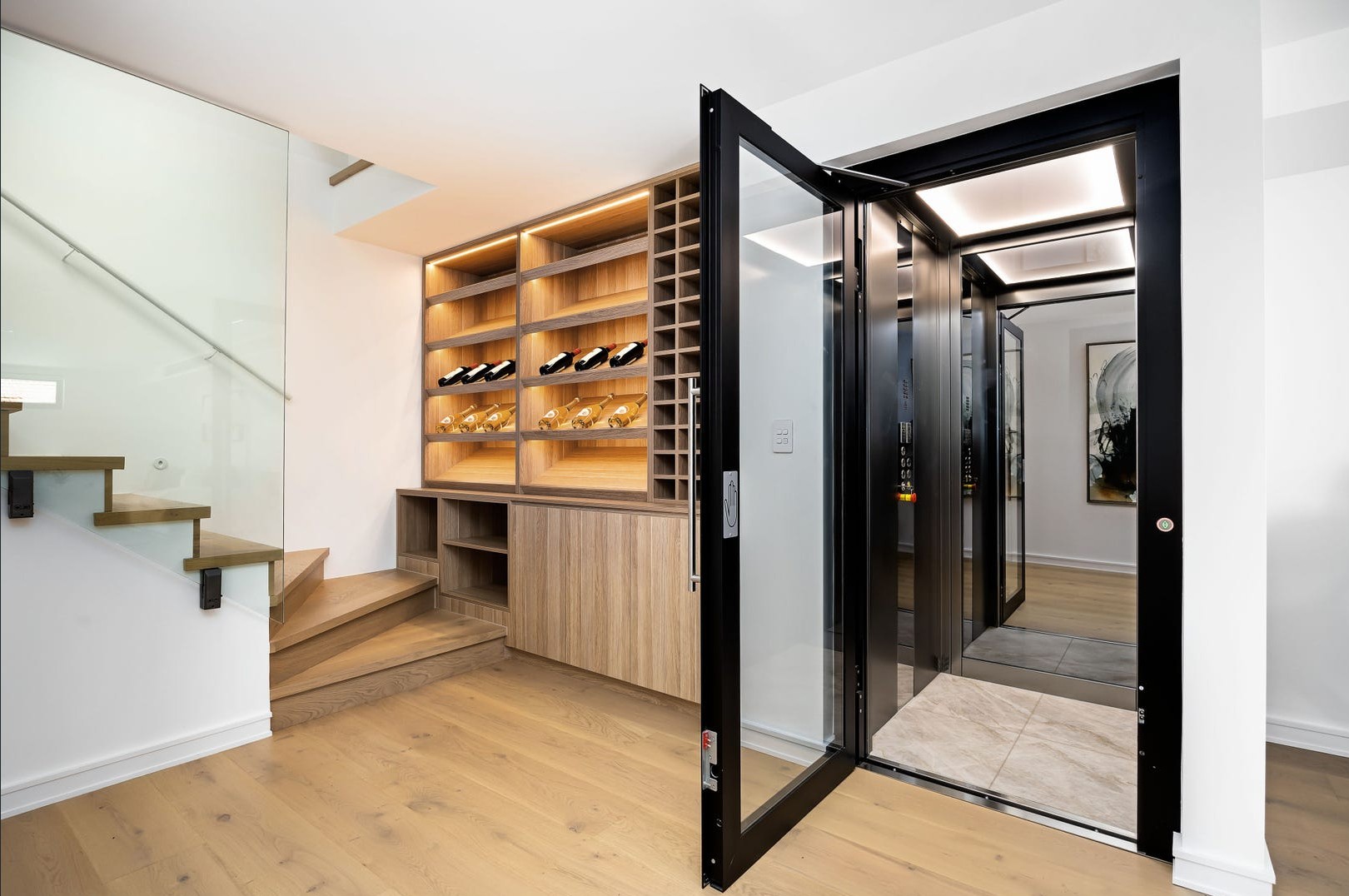

Quality you feel at the first touch. Italian crafted swing and sliding doors - both available across the range.
Light, quiet and precise, with a finish that reads as millwork.
Primed steel option available. Bus door required in the City of LA.
View the Gallery →

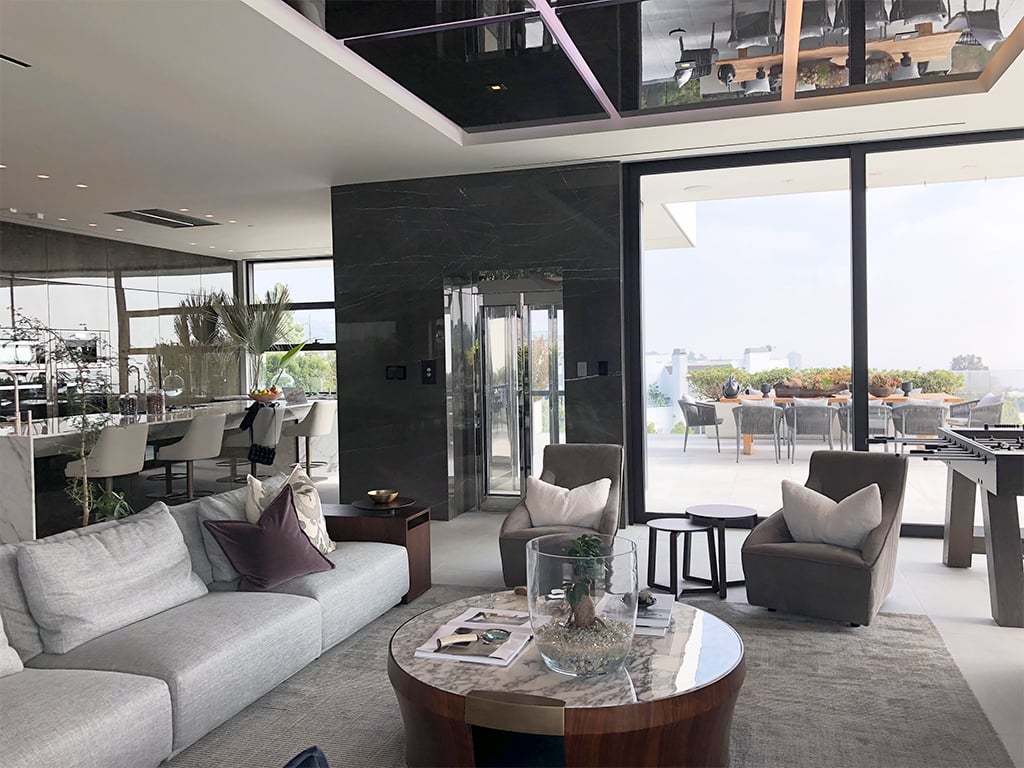

Doors glide within the shaft for a flush, seamless landing.
Hands-free operation available.
View the Gallery →The Proven Best Seller
The Proven Best Seller
Every specification, side by side.
| Feature | A Series | E Series |
|---|---|---|
| Location | California | CaliforniaExcluding the City of LA |
| Noise | Quiet | Silent |
| Travel | 2 to 6 levels | 2 to 6 levels |
| Load | 880 lbLAMC: 950 lb | 950 lb |
| Capacity | 5 to 6 persons | 6 to 7 persons |
| Speed | 59 fpmLAMC: 40 fpm | 59 fpm or 108 fpm |
| Time Between 2 Floors | 10 seconds | 5 seconds |
| Pit Depth* | 7½ in | 12 in |
| Headroom* | 105 in | 108 in |
| Power | 40 amp | 25 amp |
| Machine* | Small machine room cabinet27 x 18 x 61 in (LAMC: 36 x 48 x 85 in) | Vertical cabinet alongside the shaft15.5 x 11 x 82.5 in |
| Look & Style | Full Range of Italian Finishes & Designs | |
| Best For | California's best seller since 2012, with proven long-term reliability. | For those who demand the best. |
* Indicative only. These are common minimum dimensions; cabin and shaft sizes are tailored to your home and confirmed on your quote. LAMC = Los Angeles Municipal Code (City of LA).
Specifying an elevator? Everything your documentation needs.
Choose the A Series hydraulic for proven reliability and smaller spaces - it requires just 7.5 in of pit depth, serves 2 to 6 levels, and carries 5-6 persons (880 lbs; 950 lbs in the City of LA). California's best seller since 2012, it's available throughout California, including the City of LA.
Choose the E Series electric gearless for premium performance and capacity - it serves 2 to 6 levels, carries 6-7 persons (950 lbs), travels at 59 or 108 fpm and runs silently. It's our premium gearless option - faster, larger and designed for luxury multi-level homes - and is available throughout California, excluding the City of LA. Both series are powered by Italian engines. During your showroom visit and site assessment, we help you compare the differences and select the right series for your home.
Your drive type is the engine that powers your elevator, and both of our options are Italian engines. The A Series is hydraulic; the E Series is electric gearless. Speed, sound levels, pit depth, capacity, machine space and price can all vary between the two.
The best way to understand the differences is to visit one of our luxury showrooms. Our team will guide you through the A and E Series so you can confidently choose the right option for your home, layout and budget.
Our A Series is the best choice for narrow shafts and tight footprints. It requires minimal pit depth (7.5 in) and our Italian engineering allows flexibility in cabin dimensions to fit your exact shaft opening. Options for swing or sliding doors help optimize tight spaces.
If your shaft is extremely tight, we work with you to optimize cabin size and door configuration. Our expert design team reviews your shaft dimensions and recommends configurations that maximize usable space.
The A Series is hydraulic: 5-6 persons, 880 lbs capacity (950 lbs in the City of LA), 59 fpm speed (40 fpm in the City of LA), 40 amp single-phase power, 7.5 in pit depth, 105 in headroom, and 10 seconds between two floors. It requires a small machine room cabinet, and is best for proven reliability and smaller spaces.
The E Series is electric gearless: 6-7 persons (950 lbs), 59 or 108 fpm speed, 25 amp single-phase power, 12 in pit depth, 108 in headroom, and 5 seconds between two floors. It uses a vertical machine cabinet alongside the shaft. Fastest, most spacious and silent - our premium option.
Pit depth differs because of the engineering of each series. The A Series hydraulic needs just 7.5 in of pit depth. The E Series gearless traction needs 12 in to accommodate the counterweight system.
Shallower pit depth (A Series) is less expensive to construct and suits retrofits. Deeper pits (E Series) require more excavation and structural work, which can increase builder costs.
We include scaffold for safe installation, free 1 month storage, a GSM emergency phone in the cabin, and In Cabin Self Rescue (ICSR) at no extra cost on both the A and E Series (note: ICSR is not available for jobs in the City of LA). Our 3-year parts warranty and the first year of servicing are also included.
Not included are builder works (shaft construction, pit preparation, structural modifications) and electrical upgrades beyond standard connections.
Both series use a machine cabinet rather than a full traditional machine room. The A Series hydraulic needs a small machine room cabinet (27 x 18 x 61 in; 36 x 48 x 85 in in the City of LA). The E Series uses a vertical machine cabinet positioned alongside the shaft (15.5 x 11 x 82.5 in).
We confirm the exact machine location and space requirements during your site assessment. Lower and alternative dimensions are often possible.
The A Series hydraulic requires 40 amp single-phase power. The E Series gearless requires 25 amp single-phase power. Both operate on standard domestic electrical infrastructure.
We assess your power supply during the site visit and advise if upgrades are needed.
Both the A Series and E Series serve 2 to 6 levels. The E Series carries up to 6-7 persons, making it ideal for larger multi-level homes.
We recommend the best option based on your floor plan and total travel height.
Yes. Single, opposite and adjacent openings are available in both swing and sliding doors (some sliding/adjacent orientations may not be possible and are confirmed at design stage). Single doors are standard, opposite doors allow through-cabin traffic, and adjacent doors suit corner installations.
Please note: swing-door elevators within the City of LA must include a Bus Door to comply with the Los Angeles Municipal Code (LAMC) and the ASME A17.1 Elevator Safety Code. Our design team will recommend the best configuration for your space.
Our price includes elevator supply, installation, testing, handover, scaffold, storage, GSM phone, and In Cabin Self Rescue (where permitted; not in the City of LA), plus our 3-year parts warranty with the first year of servicing included.
Builder works are excluded and quoted separately.

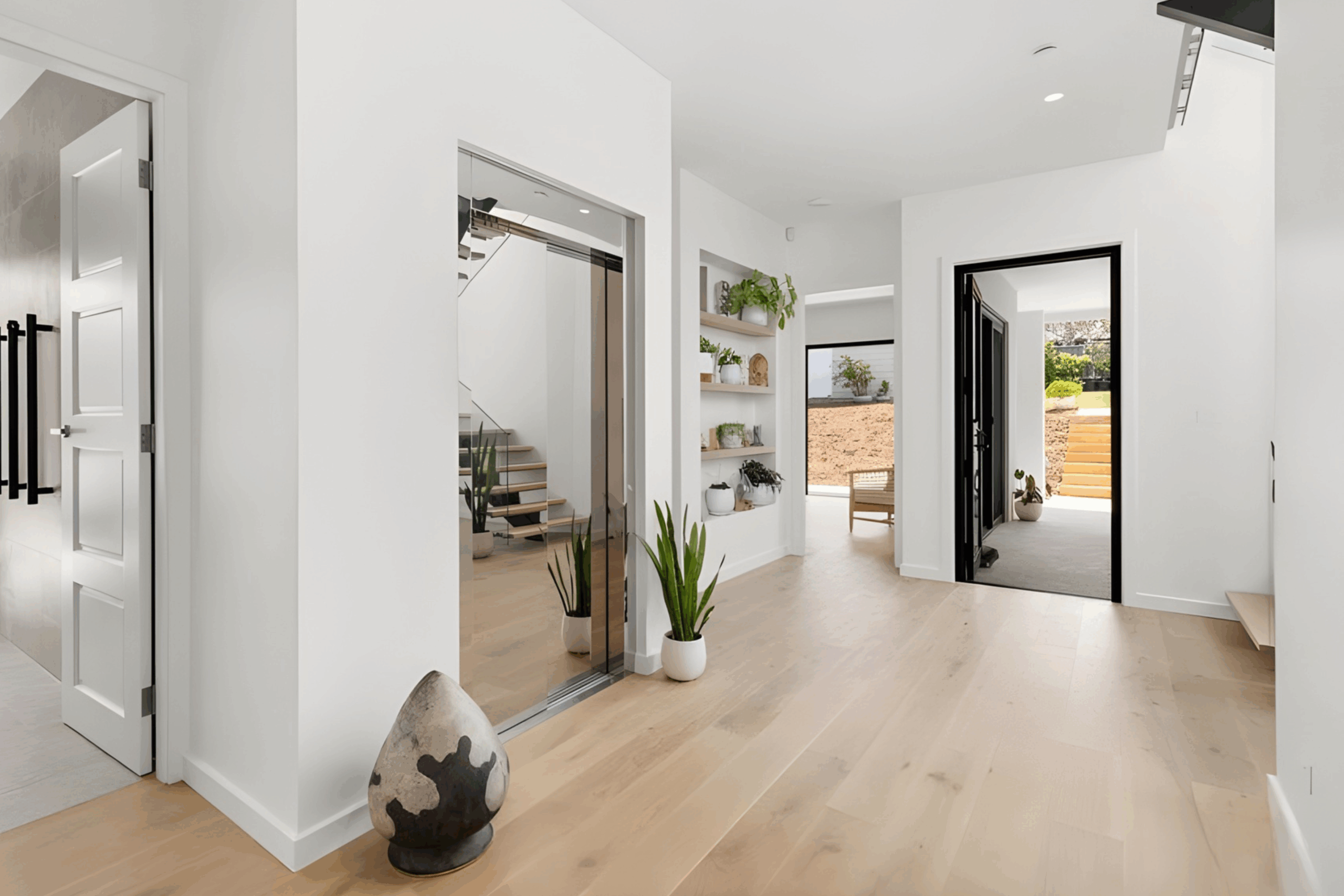

Elevator Boutique offers a 3-year parts warranty, which begins once the elevator is installed and ready for test.
The first year of servicing is also included and can be extended, all servicing is carried out by Elevator Boutique technicians, and service customers receive 24-hour support. We currently support more than 12,400 elevators across California and Australia.
